EZVIZ H90 Wi-Fi PT Camera Dual-Lens 2K
EZVIZ H90 Wi-Fi PT Camera Dual-Lens 2K
Couldn't load pickup availability
- 2K+2K and Dual Lenses
- Co-Detection for Auto Smart Tracking
- Dual Rotations
- AI-Powered Human/Vehicle Shape Detection
- 360 degree Panoramic Coverage
- Two Patrol Modes
- Active Defense
- Weatherproof Design
- Color Night Vision
- Support MicroSD (Up to 512GB)
Another innovation in the EZVIZ star range of dual-lens cameras, the H90 Dual is taking 360-degree protection to a whole new level by combining two rotating lenses in a single housing. Its orb-shaped camera inherits the beloved features from EZVIZ’s pan/tilt series, and its UFO-shaped top camera adds another sweeping, ultra-wide field of view to leave no corner unwatched. The two boast additional smartness by responding to each other to complete interlinked detection and view change. In short, the H90 Dual provides unparalleled vision and efficiency for large-area monitoring.
| Specifications | |
|---|---|
| Model | CS-H90-R100-8H44WKFL |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens |
Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
| PT Angle |
Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle ) Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination |
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| IR Night Vision | 30 m (98 ft) |
| Color Night Vision |
Up to 40 m (131 ft) when two lenses point in the same direction |
| Video & Audio | |
| Max Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD; Full HD; Standard adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm |
AI-powered human shape detection AI-powered vehicle shape detection Motion detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions |
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | IP65 + 2h rainstorm |
| Power Consumption | MAX. 18W |

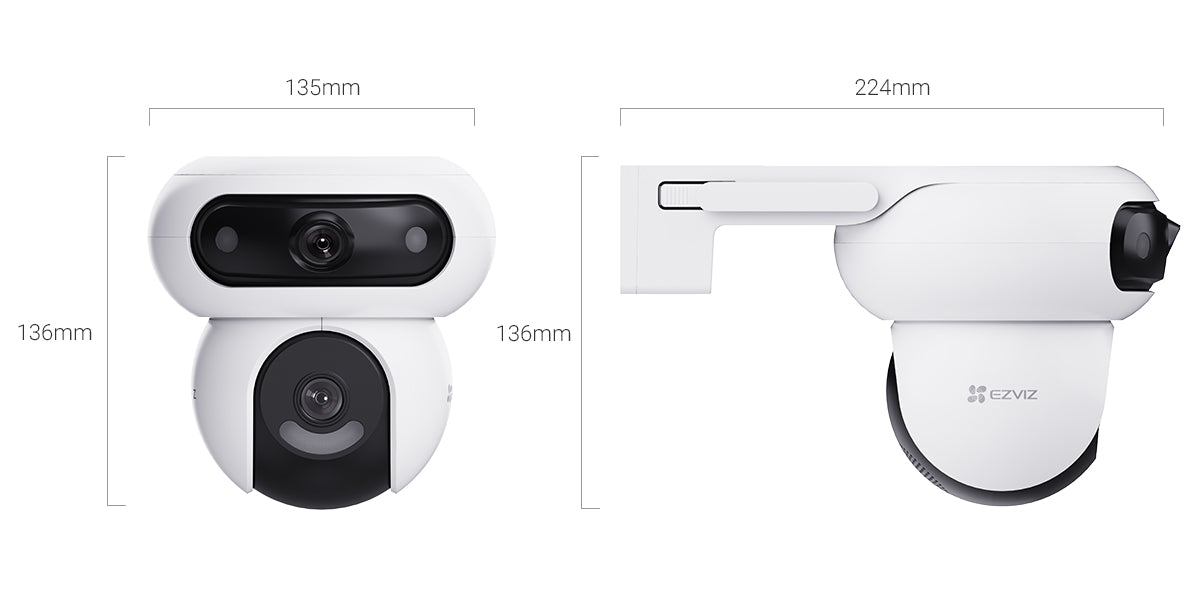

| Dimensions | 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) |
| Packaging Dimensions | 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch) |
| Weight |
Net weight: 723 g (25.51 oz) With Package: 1203 g (42.43 oz) |
| In the box | |
| In the box | - H90 Dual 2K+ Camera |
| - Power Adapter | |
| - Drill Template | |
| - Waterproof Kit | |
| - Screw Kit | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
